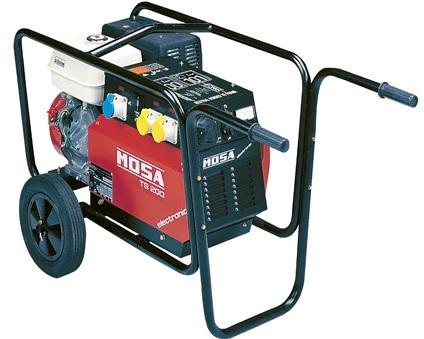

MOSA TS200 DES / CF Welder Generator

This MOSA TS200 DES / CF welder generator is perfect for site work jobs. The wheeled design allows for ease of manoeuvering on site. The machine benefits from:

• PUWER Assessment
• Electrical Inspection
• Wheeled
• Pull handle
• Rods and Welding Accessories Available

Diesel Engine driven welder - Yanmar L 100 V Engine -  Single-phase asyncronous alternator

WELDING

• Welding current: 20 ÷ 100 A / 90 ÷ 190 A
• Service: 190 A - 35%  |  160 A - 60%  |  120 A - 100%
• Open circuit voltage (no-load voltage): 98 V

POWER RATINGS

• Three-phase power: 6 kVA / 400 V / 8.7 A
• Single-phase power: 5 kVA / 230 V / 21.7 A
• Single-phase power: 2 kVA / 48 V / 41.6 A

GENERAL SPECIFICATION

• Tank capacity: 5.5 l
• Running time (welder 60%): 1 h
• Acoustic power LwA (pressure LpA): 99 dB(A) (74 dB(A) @ 7 m)
• Weight: 133 Kg
• Dimensions max. on base Lxlxh:  900x550x620 mm

---

Downloads:

MOSA TS200 DES / CF Welder Generator Data Sheet

MOSA TS200 DES / CF Welder Generator Safety Guidance Sheet

MOSA TS200 DES / CF Welder Generator Safety Video

---

Specifications

Details	Specification
Power	Diesel
Welding Type	ARC
Rating	5kVa
Tank Capacity	5.5 litres
Weight	133 kg Dry
Run Time 60%	1 Hour
Acoustic power LwA (pressure LpA)	99 dB(A) (74 dB(A) @ 7 m)
